Qalabka alxanka ee Sawirka leh ee Rolling Mill

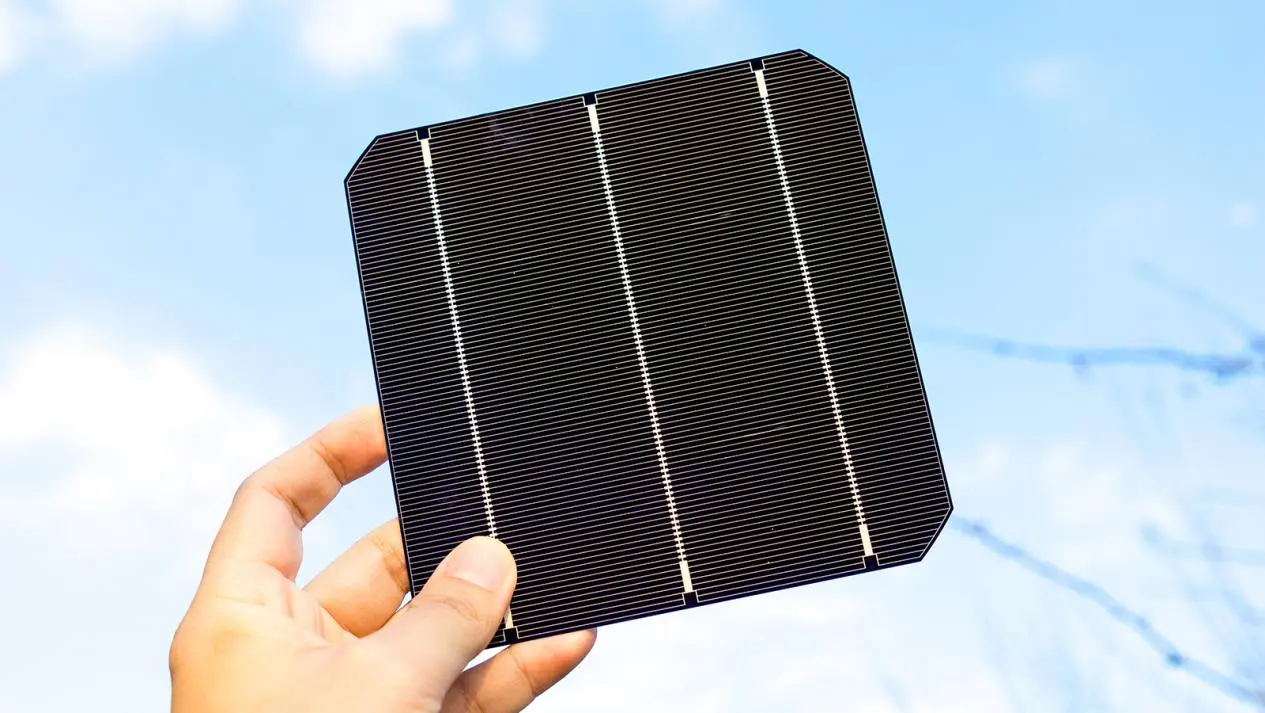

Qalabka alxanka ee Shiinaha ee sawir-qaadista ah ee ay soo saartay warshadda GRM Rolling Mill waa alaab gaar ah oo siligga fidsan oo loo isticmaalo in lagu xidho unugyada qorraxda ee qaybaha sawir-qaadista. Waxay ka kooban tahay substrate copper iyo dahaarka dusha sare. Substrate Copper sida caadiga ah waa naxaas nadiif ah oo nadiif ah oo nadiif ah oo bilaash ah ama T2 naxaas cas, oo leh maaddo naxaas ah ≥ 99.99% iyo conductivity ≥ 98%. Waxay leedahay conductivity wanaagsan iyo xoog gaar ah, kaas oo xaqiijin kara gudbinta hadda hufan.

Soo dir weydiin

Sharaxaada Alaabta

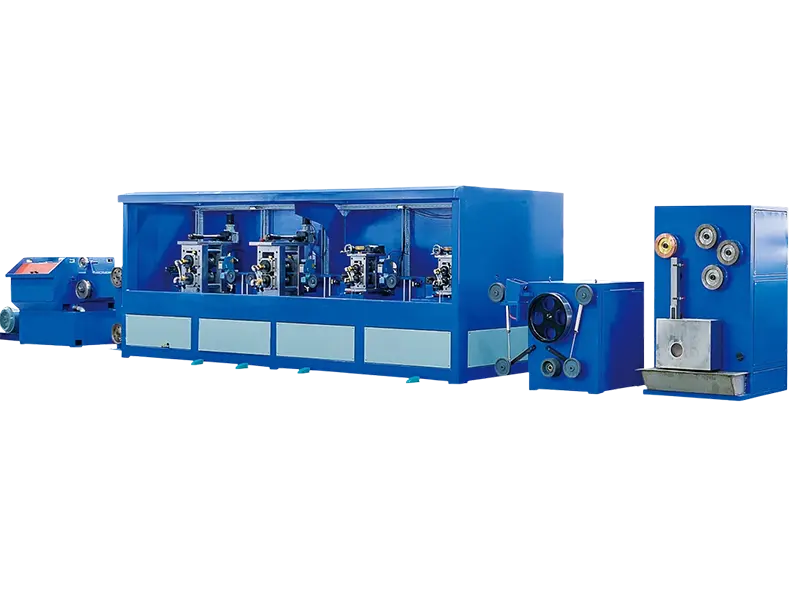

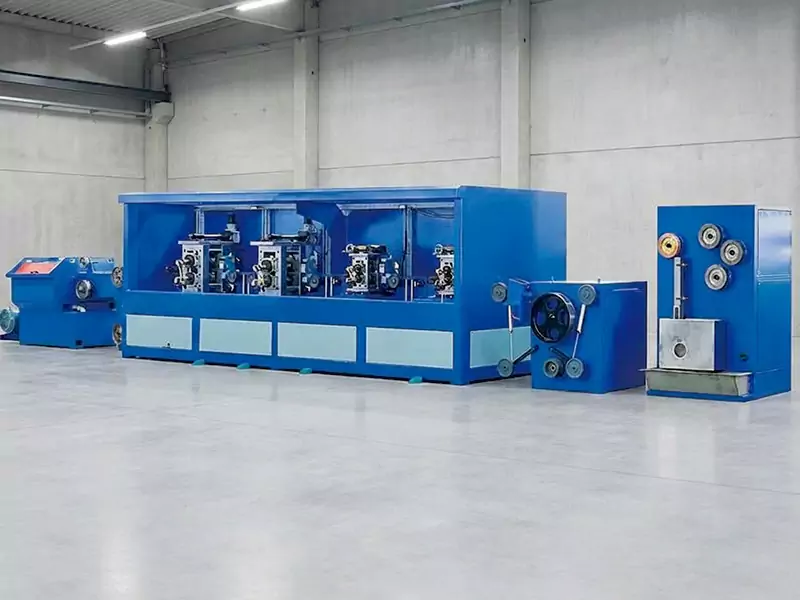

Qalabka Welding Welding Strip Rolling Mill ee raaga ee GRM Rolling Mill mashiin isku dhafan oo ay si madax-banaan u soo saartay shirkadeena waa qalab caqli-gal heersare ah oo si gaar ah loogu talagalay warshadaha sawir-qaadista. Waxay isku daraysaa qaybaha shaqada ee asaasiga ah sida nidaamka siligga-dhigista si toos ah oo toos ah, rogid sax ah oo baas badan leh, kontoroolka xiisadda caqliga leh, ciribtirka joogtada ah iyo dabaysha laba-geeska ah.

Maaddaama ay tahay warshadaha hogaaminaya xawaaraha sare ee xawaaraha sare, mashiinka isku dhafan ee saxda ah ee saxda ah, qalabkani wuxuu ogaan karaa habka buuxa ee wax soo saarka isku dhafan ee ¢3mm alaabta ceeriin ee naxaasta ilaa alaabta la dhammeeyey (ballaaran 3 ~ 8mm, dhumucdiisuna tahay 0.2 ~ 0.45mm), oo leh xawaaraha ugu sarreeya ee 250m / min, oo si fiican u dhigma shuruudaha adag ee wax soo saarka sare ee tayada sare ee sawir-qaadista sare xasiloonida.

Socodka habka caadiga ah

1. Habka duubista siliga fidsan (loo adeegsan karo alxanka sawir-qaadista mashiinnada isku dhafan ee ribbon-convex ribbon)

Bixinta siliga - sawirista fiilada qaab-badan - jaangooyeynta saxda ah - ogaanshaha iyo xakamaynta internetka - sawir hal-hal-hal-hal-hal-hal-hal-hal-qabsi ah - CNC jeexid - tinning xawaare sare leh - soo-saarid joogto ah (ilaalinta nitrogen) - dabayl joogto ah

Qiyaasaha Farsamada

Alaabta Ribbon ee PV	Halbeegga	Warshadaha Heerka	Shirkad kale	GRM
Isku xirka caadiga ah PV Ribbon	Dhumucda dahaarka	±5μm	25± 5μm	25± 3μm
	Dhumucda alaabta dhammaatay	20.01mm	20.015mm	20.01mm
	Balaadhka alaabta la dhammeeyay	±0.05mm	±0.05mm	±0.05mm
	Xoog xajin	≥110Mpa	≥150Mpa	≥170Mpa
	Dheeraynta	≥15%	≥25%	≥25%
	Xoog soo saar	≤70Mpa	≤70Mpa	62.68Mpa
	qaloocida sickle	≤5mm/m	≤4mm/m	≤4mm/m
	iska caabin	0.30Ω* mm/m 0.30Ω*	0.02-0.023Ωmm/m 0.02-0.023Ω	0.0230 Ωmm/m 0.0230Ω
	Iska caabinta gabowga	-	-	DH2000

Faa'iidooyinka farsamada

Saxnaanta sare: ± 0.01mm dulqaadka dhumucda, la qabsiga heerarka adag ee xariijimaha alxanka sawir-qaadista

Waxtarka sare: 250m/min xawaarihiisa rogrogmi kara, tayo sare leh oo alxanka alxanka ah oo tayo sare leh oo la bixiyay

La qabsiga agabka badan: ku habboon naxaasta, aluminium aluminium, iwm, miisaan xoog leh

Qalafsanaanta dusha sare ee Ra≤0.2μm

Codsiyada caadiga ah:

Goobta Photovoltaic: wax soo saarka ballaaran ee xargaha alxanka sawirkavoltaic iyo baska si ay u caawiyaan qaybaha u qabtaan koronta si hufan.

Habaynta gaarka ah ee baska qaabaysan ee gaarka ah (qayb saddex xagal/trapezoidal cross-section)

Warshadaha elektarooniga ah: farsamaynta siligga fidsan ee saxda ah, oo ku habboon transformers, inductors iyo qaybaha kale

Naqshad la habeeyey iyo adeegga iibka kadib

Adeegga gaarka ah: cabbirrada sida tirada baasaska, walxaha caaryada, iyo xawaaraha sawiridda ayaa lagu hagaajin karaa iyadoo loo eegayo baahiyaha gaarka ah ee macaamiisha.

Cusbooneysiinta qalabka: taageer ku darida modules ka gudubka marxaladda danbe si loo daboolo baahiyaha balaadhinta awooda ama habsocodka cusboonaysiinta.

Kharashka dayactirka: Baasaska badan, ayaa kor u kacaya caaryada iyo kharashka dayactirka, laakiin waxtarka hal habaynta ayaa si weyn loo hagaajiyay. Waxaa lagu talinayaa in la sameeyo doorasho macquul ah oo ku salaysan miisaanka wax soo saarka.

Ku soo dhawoow inaad nala soo xidhiidho oo aad ogaato macluumaad dheeraad ah oo ku saabsan Photovoltaic Welding Strip Rolling Mill!
