Mashiinka Ribbon PV Qoraxda

Qorraxda PV Ribbon & xalalka soo saarista siliga MBB

GRM waxay siisaa xalal wax soo saar oo dhamaystiranribbon PV isku xira, ribbon baska PV iyo soo saarista silig wareeg ah MBB. Qalabkayaga qalabku wuxuu daboolayaa duubista saxda ah, nuugista, tinning, daaweynta dusha sare iyo nidaamyada isdabajoogga tooska ah, taageeraya soo saarista kirishbooyada waxqabadka sare leh ee qaybaha casriga ah ee sawir-qaadista.

Naqshadeynta tayada xasilloon, xakamaynta cabbirka saxda ah iyo hawlgalka muddada dheer ee la isku halayn karo, xalalka GRM waxay ka caawiyaan soosaarayaasha inay buuxiyaan baahida sii kordheysa ee teknoolojiyadda isku xirka unugyada qorraxda ee waxtarka leh.

Dhamaystiran xalalka Qalab ee Sameeyayaasha Qoraxda

Ribbon isku xidhka PV

PV Busbar

MBB Wareegga Wareegga

Isku xidhka ribbonu kala gudbiya hadda u dhexeeya unugyada cadceedda,busbar ribbonururiyaa oo keena hadda sanduuqa isgoyska, halkaMBB silig wareegsanwuxuu sahla waxtarka moduleka sare isagoo yareynaya khasaaraha hadhka.

Daariyaashani waxay door muhiim ah ka ciyaaraan soo saarista korantada, isku halaynta iyo waxqabadka moduleka muddada dheer.

Sida Loo Sameeyo Solar Conductors

GRM waxay bixisaa xalal wax-soo-saar dhammaystiran oo loogu talagalay soo saarista kirishbooyada qorraxda. Qalabka GRM waxa uu daboolayaa socodka shaqo ee wax soo saarka ee dhamaystiran laga bilaabo rogid sax ah iyo soo-jiidhaynta ilaa daasadda iyo isku dubaridka walxaha naxaasta ilaa ribbon PV iyo alaabta siliga MBB.

Habka wax-soo-saarka isku-dhafka ah wuxuu hubinayaa saxnaanta cabbirka, tayada dahaarka deggan iyo waxtarka wax-soo-saarka sare.

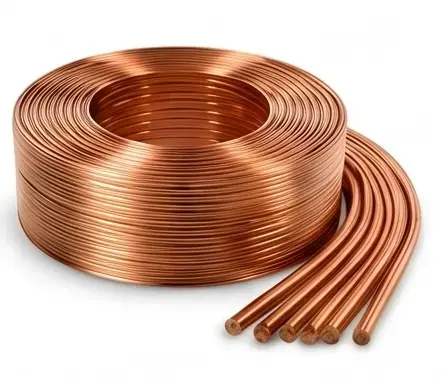

Qalabka Copper Ceyriinka ah

Usha naxaasta nadiifka ah ee sare sida alaabta ceeriin

Usha Copper

Siliga Copper

→

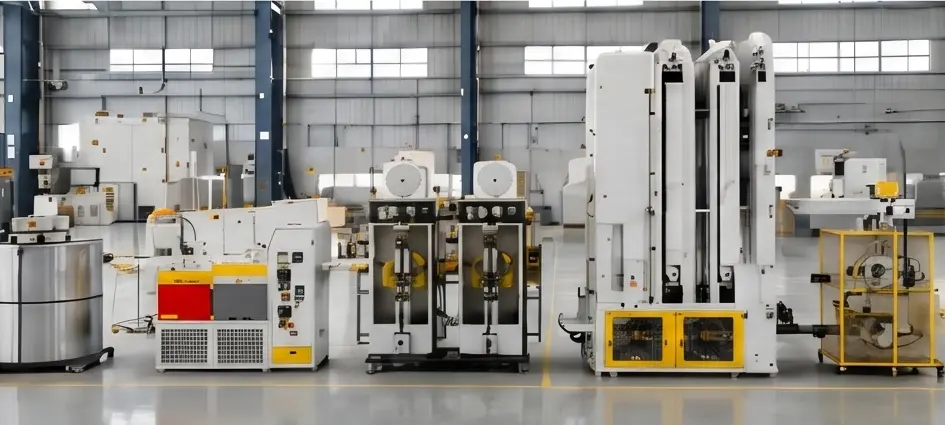

Qalabka Wax-soo-saarka ee GRM

Khadka wax-soo-saarka oo dhammaystiran ee samaynta saxda ah, baabiinta iyo xoqidda

Duubista
Mill

Annealing
Foornada

Dusha sare
Daawaynta

Dabaqashada
Nidaamka

Koronto
Xakamaynta

→

Solar Conductors

ribbon PV sax ah-sare iyo MBB silig wareegsan

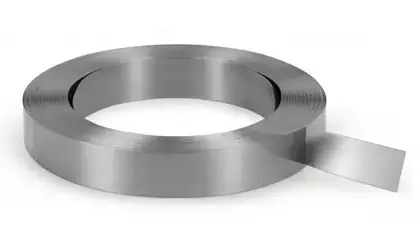

Ribbon PV

(Ribbon-isku-xidhka-isku-xidhka/Ribbon-ka-baska)

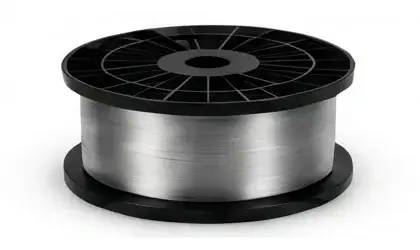

MBB Wareegga Wareegga

(φ0.20-0.25 mm)

→

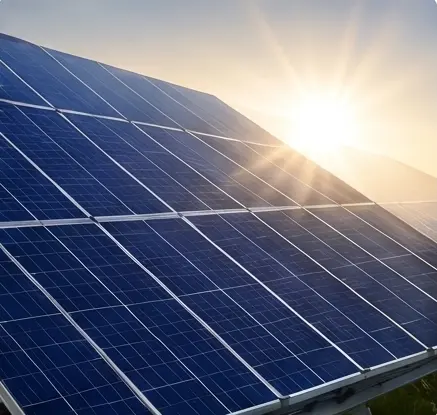

Module Qorraxda

Loo isticmaalo qaybo cadceed oo tayo sare leh

TOPCon
Modules

HJT
Modules

Isbarbardhigga Alaabta.

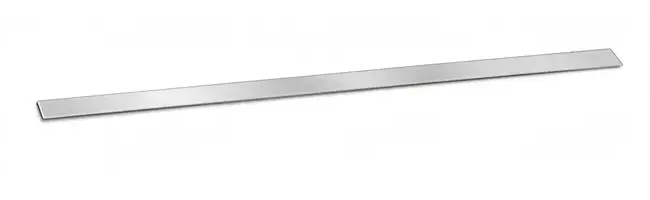

Ribbon isku xidhka PV

(Ribbon Tabbing)

Shaqada

Isku xirka unugga

Ballaca

0.3 - 1.6 mm

Dhumucda

0.10 - 0.25 mm

Codsiga

Xargaha Unugyada

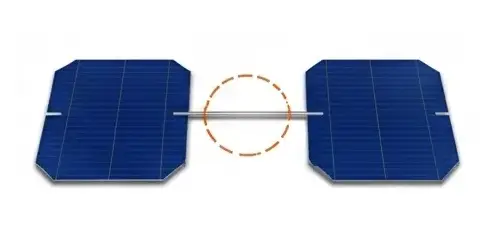

Waxa uu ku xidhaa unugyo ku xiga xargaha moduleka.

Faa'iidada Muhiimka ah

Isku-xidhka unug-la-unug ee la isku halayn karo oo leh alxanka sare iyo dhaqdhaqaaqa wanaagsan.

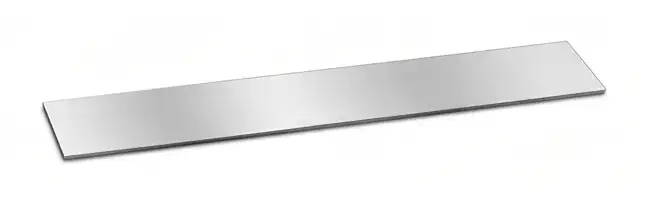

PV Busbar Ribbon

(Silig baska)

Shaqada

Ururinta Hadda

Ballaca

3.0 - 8.0 mm

Dhumucda

0.20 - 0.50 mm

Codsiga

Soo saarida Module

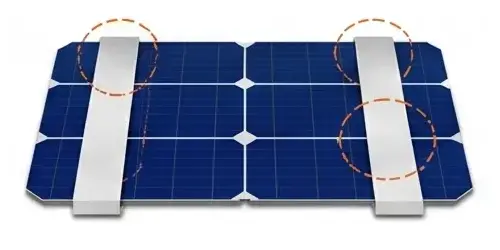

Busbar ribbon current collection diagram

Ka soo ururiya hadda unugyo isku xidhan oo u gudbiya sanduuqa isgoyska.

Faa'iidada Muhiimka ah

Iska caabin hooseeya iyo awoodda qaadida hadda sare ee wax soo saarka tamarta ugu badan.

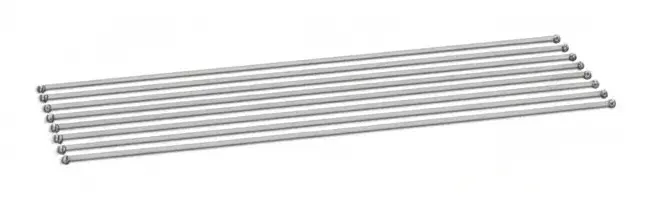

PV MBB Wareegga Wareegga

Shaqada

Isku xirka Basbar-badan

Dhexroorka

φ0.20 - 0.26 mm

Dhumucda

–

Codsiga

Hababka Waxtarka Sare

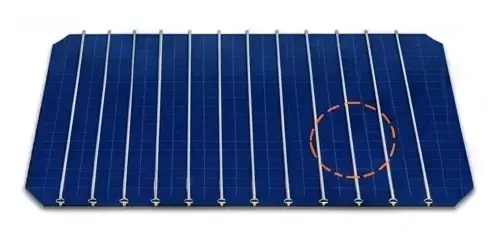

MBB round wire soldering on cell surface

Lagu iibiyey dusha unugga si loo yareeyo hadhka oo loo hagaajiyo waxtarka.

Faa'iidada Muhiimka ah

Hoos-u-dhac ku yimaadda hadhka iyo ka faa'iidaysiga iftiinka wanaagsan ee waxtarka moduleka sare.

Muuqaal	Ribbon isku xidhka PV	PV Busbar Ribbon (Silig baska)	PV MBB Wareegga Wareegga
Shaqada	Isku xirka unugga	Ururinta Hadda	Isku xirka Basbar-badan
Ballaca	0.3-1.6mm	3.0-8.0mm	-
Dhumuc	0.1-0.25mm	0.20 -0.50mm	-
Dhexroorka	-	-	φ0.20-0.26mm
Codsiga	Xargaha Unugyada	Soo Bixinta Module	Hababka Waxtarka Sare

ribbon PV iyo MBB wareeg ah ayaa si weyn loogu isticmaalaa soo saarista modules photovoltaic waxtarka sare leh. Iyada oo si degdeg ah loo aqbalayo tignoolajiyada unugyada TOPCon, HJT iyo BC, soosaarayaashu waxay u baahan yihiin kirishbooyada leh saxnaanta sare, alxanka wanaagsan iyo waxqabadka korantada oo la hagaajiyay.

Qalabka GRM wuxuu taageeraa soo saarista kirishbooyada qorraxda ee loo isticmaalo:

TOPCon Modules

HJT Modules

Modules BC

Modules Silicon Crystalline Caadi ah

Utility-Miisaanka Nidaamyada Korontada Qoraxda

Mashruucyada Tamarta Cadceedda ee la qaybiyay

Ay ku kalsoon yihiin Hogaamiyaasha Warshadaha

Qalabka GRM waxaa lasiiyay ribbon PV hormuudka u ah iyo soosaarayaasha kirishbooyada qorraxda ee Shiinaha iyo suuqyada dibadda. Muddo sannado ah oo iskaashi lala yeeshay shuraakada warshadaha, GRM waxa ay ururisay waayo-aragnimo ballaadhan oo ku saabsan rogid-rogid, nuugista, tinning iyo habsocodka hagaajinta.

Xalalka mashiinka ribbon ee cadceedda ee PV waxay taageertaa soosaarayaasha soo saaraya kondhomiyeyaasha loogu talagalay moodooyinka qoraxda ee waxtarka leh waxayna ka caawiyaan macaamiisha hagaajinta wax soo saarka, joogteynta badeecada iyo isku halaynta shaqada muddada-dheer.

Bilow Mashruuca Soo saarista PV ee Qoraxda

Haddi aad soo galayso warshadaha kirishbooyada PV ama aad kordhinayso awoodaada wax soo saarka, GRM waxa ay ku siinaysaa xalal qalab oo dhamaystiran, khibrad geedi socodka iyo taageero farsamo oo wakhti dheer ah.

Kala xidhiidh GRMhabaysanribbon PV ama xalka wax soo saarka siliga MBB.

Maxaad u dooratay GRM?

Diirada saara gaarsiinta qalab horumarsan iyo xalal lagu kalsoonaan karo oo loogu talagalay ribbon PV iyo soo saarista siliga MBB.

20+

Sanado

Khibrad Wareegid Sax ah

Khibrad ballaadhan oo ku saabsan rogid sax ah, dahaarka iyo qalabka wax soo saarka kaari.

10+

Patents

Tignoolajiyada Patented

Tignoolajiyada badan ee shatiga leh ee rogid sax ah, xakamaynta xiisadda iyo hababka daaweynta dusha sare.

100+

Khadadka la rakibay

Tixraaca Warshadaha

Lagu kalsoon yahay oo ay hogaaminayaan ribbon PV iyo soosaarayaasha cadceedda ee aduunka oo dhan.

24/7

Taageerada Farsamada

Adeegga Wareegga Nolosha

Taageero dhamaystiran laga bilaabo rakibaadda iyo hawlgelinta ilaa cusboonaysiinta iyo hagaajinta.

Su'aalaha Inta Badan La Isweydiiyo

1. Waa maxay ribbon PV?

ribbon PV waa kirishbooy fidsan oo naxaas ah oo lagu dahaadhay alxan waxaana loo isticmaalaa in lagu xidho unugyada cadceedda ee ku dhex jira qaybaha sawir-qaadista.

2. Waa maxay faraqa u dhexeeya ribbon-isku-xidhka iyo ribbon-ka baska?

Xidhiidhka isku xidhka ayaa isku xidha unugyada cadceedda, halka ribbon baska uu ururiyo oo u gudbiyo tamarta korontada ee sanduuqa isgoyska.

3.Waa maxay MBB silig wareegsan?

Silig wareega MBB waxaa loo isticmaalaa qaybo badan oo basbar qoraxda si loo yareeyo khasaaraha hadh iyo horumarinta hufnaanta module.

4.Waa maxay qalabka loo baahan yahay si loo soo saaro ribbon PV?

Khadka wax-soo-saarka ee PV-ga oo dhameystiran waxaa ka mid ah rogid, nusqaamin, tiin, xakameynta xiisadda iyo nidaamyada kala-baxa.

5.Miyaa hal xariiq wax soo saarku soo saari karaa cabbirro ribbon oo kala duwan?

Haa Nidaamyada GRM waxaa loo habayn karaa wax soo saarka dabacsan iyo isbeddelka alaabta degdegga ah.

View as

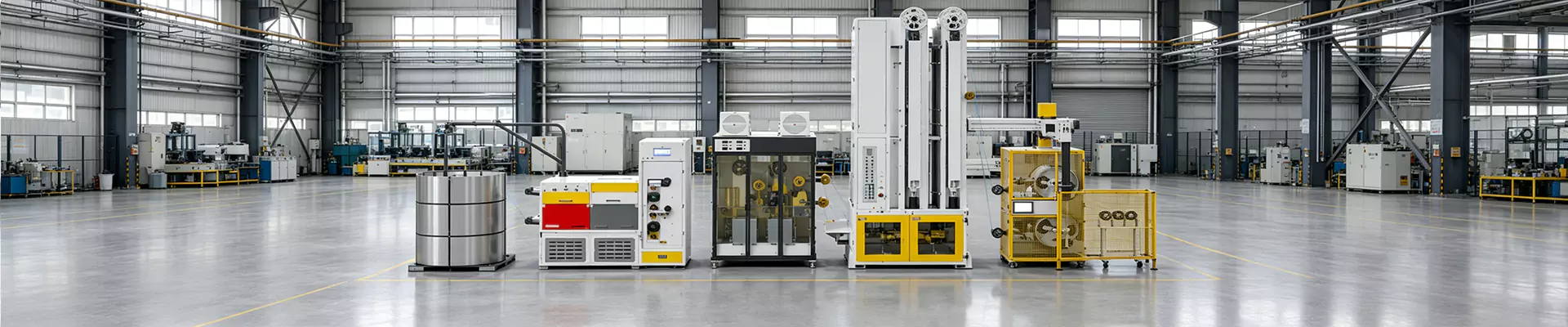

Khadka Soo saarista Busbar Ribbon ee PV

Khadka Soo saarista Busbar ee GRM PV waxaa loogu talagalay in uu si joogto ah uga shaqeeyo TU1 silig naxaas ah oo aan oksijiin ka xoroobin ribbon fidsan oo saxan oo saxan. Khadku wuxuu ku habboon yahay ribbon isku xidhka PV, ribbon baska, iyo wax soo saarka ribbon baska ee milicsada.
Xariiqda dhammays tiran waxay midaysaa sawir-qaadista siligga, rogid sax ah, nuugista joogtada ah, daawaynta qulqulka, dahaarka-kulul-kulul, iyo qaadashada toos ah. Waxay ka caawisaa soosaarayaasha ribbon ee PV inay xakameeyaan saxnaanta ballaca iyo dhumucda dhumucda, tayada dahaarka dahaarka, toosnaanta xariijimaha, iyo joogtaynta dabaylaha.
Khadka wax-soo-saarka baska baska ee GRM waa ku dhawaad 26 mitir dhererka iyo ballaciisu waa 3 mitir, oo leh wadarta miisaanka xariiqda ilaa 14 tan. Xawaaraha naqshadeynta wuxuu gaari karaa ilaa 150 m/daqiiqo, iyadoo ku xiran cabbirka siliga naxaasta ah, cabbirada ribbon ee dhammaatay, xawaaraha tinning, iyo habka qaadashada. Marka la eego xaaladaha wax-soo-saarka caadiga ah, wax-soo-saarka bishiiba wuxuu gaari karaa ku dhawaad 60-80 tan.

Akhri wax dheeraad ah Soo dir weydiin

Mishiinka Siliga Wareega ee Cadceedda PV Cusub

GRM New Solar PV Round Wire Machine waxaa loogu talagalay soo saarista xargaha isku xira, walxaha muhiimka ah ee loo isticmaalo qaybaha PV.
Khadku waxa uu mideeyaa sawir sax ah, tiin, xakamaynta xiisadda, iyo dabaylaha caqliga leh si ay u taageerto joomatari ribbon deggan, dhumuc dahaar lebbisan, iyo sifooyin farsamo oo joogto ah. Awoodaha geeddi-socodkan waxay ka caawiyaan soo-saareyaasha PV inay hagaajiyaan tayada isku-xidhka unugyada, isku halaynta moduleka, iyo joogtaynta wax-soo-saarka muddada-dheer.

Akhri wax dheeraad ah Soo dir weydiin

<1 >

Sida soo saaraha iyo alaab-qeybiyaha Mashiinka Ribbon PV Qoraxda la isku halayn karo ee Shiinaha, waxaanu leenahay warshadeena. Haddii aad rabto inaad iibsato alaab tayo leh oo waara, fadlan nala soo xiriir.
